Decorative 6-Legged Beam Truss Center Bracket – Diamond Finial-(DFBB6L)
$30.00
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 19 and get 10% off
- Buy 20 - 34 and get 12.5% off
- Buy 35 - 49 and get 15% off
- Buy 50 - 74 and get 17.5% off
- Buy 75 - 99 and get 20% off
- Buy 100 or above and get 22.5% off
If you're not quite sure about all your selections, don't worry, after you place your order, our experts will verify them and send you a CAD drawing of your product, with the dimensions you selected so you can put your eyes on it before we manufacture it for you. You can always call us at (715) 718-0781 if you want us to walk you through your order. The project will typically take between 3-4 weeks to manufacture. If you need to have them sooner please select "rush" when ordering.
(No reviews yet)
Write a Review
Decorative 6-Legged Beam Truss Center Bracket – Diamond Finial-(DFBB6L)
Decorative 6-Legged Beam Truss Center Bracket – Diamond Finial - (DFBB6L)
A truss does not live at the peak. It lives in the web — the crowded center where a horizontal beam, a post, and the rafter lines all land in one place. The DFBB6L is the decorative six-leg plate for that joint: one piece of steel, six legs, diamond finial in the middle.
This is the ornamental version of a 6-legged truss center / web plate. It is not a ridge peak plate (that is DFBBRB3). It is not a two-leg corner plate (that is DFBB2L). It is not a plain T on a post. Count the members at the hub. If six timber faces need to land on one plate, this is the SKU.
We build each DFBB6L to the actual timber sizes and brace angles on your drawing, drill it for the hardware you will use, and finish it to match the rest of the diamond-finial set. One-piece American carbon steel, made in Superior, Wisconsin.
What a six-leg center plate is for
What a six-leg center plate is for
Open a truss and look at the middle, not the roof point.
Typical layout:
- A horizontal beam running through the center
- A post or queen-post line
- Rafters or angle braces coming in from both sides
Use DFBB6L when the truss is exposed and the center joint will be seen from the patio, the driveway, or inside the pavilion.
How this SKU is different from the rest of the diamond line
What we customize on the DFBB6LThis plate only fits if the geometry is honest:
Where this plate shows up
Order the web, not a guess
How this SKU is different from the rest of the diamond line
- DFBBRB3 — two rafters at the peak. Two slopes. One ridge.
- DFBB2L / DFBB3L — corners of the truss, fewer members.
- DFTB10 — beam to a single post. A T, not a web.
- BB6L — the same six-leg center geometry without the diamond finial.
- DFBB6L — six-leg center web + diamond finial. The decorative hub plate.
What we customize on the DFBB6LThis plate only fits if the geometry is honest:
- Number and direction of the six legs
- Angle of each rafter, brace, or queen post
- How each leg dies into the beam or post
- Overall plate size and individual leg length
- Steel thickness (1/8" through 1/2"+)
- Hole size, count, and placement for bolts or lags
- Diamond finial scale so it reads at the center of the web
- Finish: powder coat, painted color, oil-rubbed, brushed, rusted and clear-coated, or unfinished
Where this plate shows up
- Multi-brace and queen-post timber trusses
- Pergola and pavilion center hubs
- Gazebo roof webs with a through-beam
- Porch and gable trusses that stay exposed
- Barn and timber-frame roofs where the ironwork is part of the design
- Matching diamond-finial packages that already have peak and corner plates and still need the center

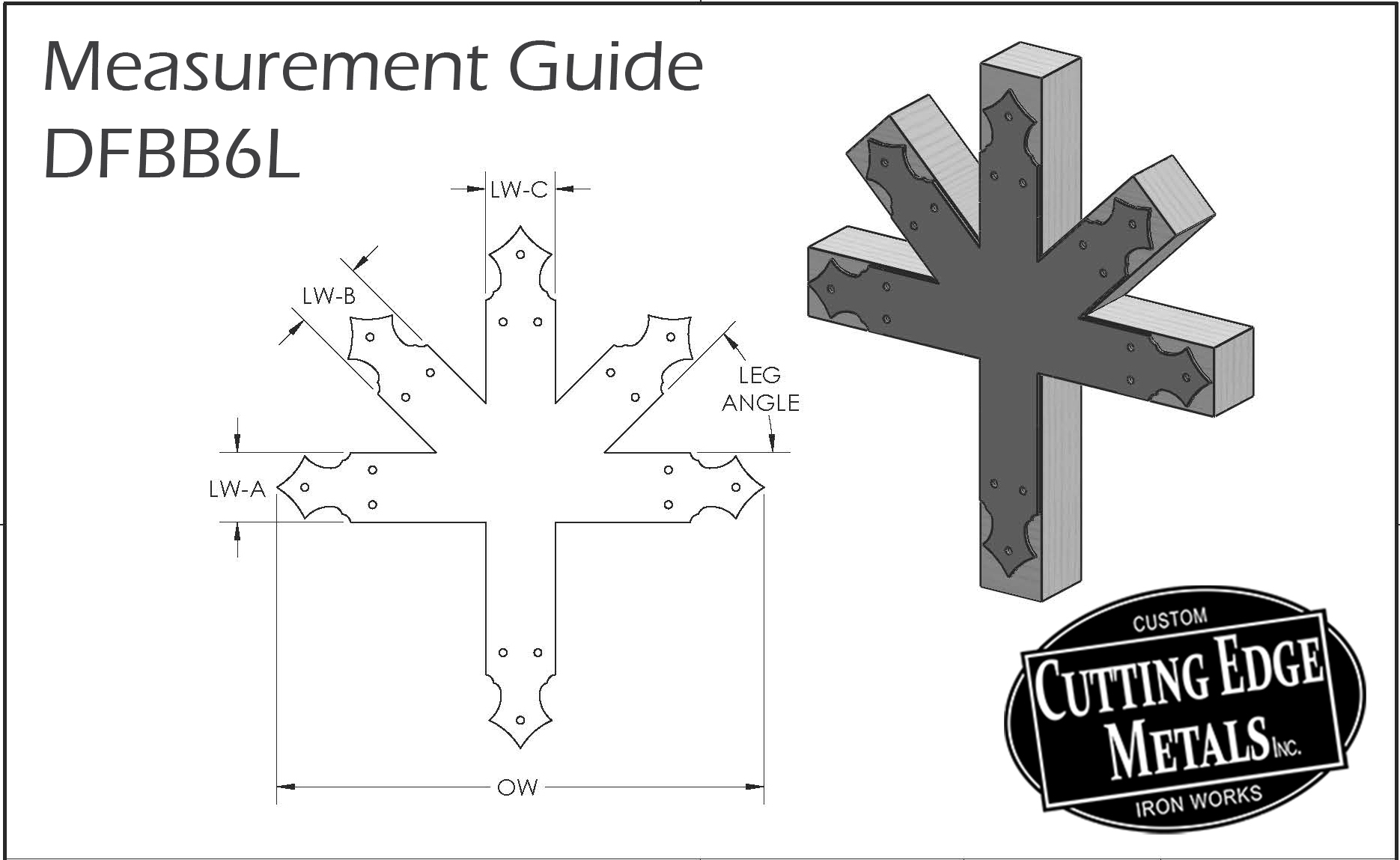

Order the web, not a guess
- Count the members at the hub. If it is six, stay on DFBB6L.
- Measure each timber at the joint — actual width and thickness, not the tag size.
- Record the angles. Roof pitch alone is not enough if braces come in at a different slope.
- Choose thickness and hole size from the hardware on the job.
- Match the finish to DFBBRB3, DFBB2L, DFBB3L, and DFTB10 so the set looks like one family.
