7-Legged Beam Truss Center Bracket - (BB7L)
$27.50
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 19 and get 10% off
- Buy 20 - 34 and get 12.5% off
- Buy 35 - 49 and get 15% off
- Buy 50 - 74 and get 17.5% off
- Buy 75 - 99 and get 20% off
- Buy 100 or above and get 22.5% off
If you're not quite sure about all your selections, don't worry, after you place your order, our experts will verify them and send you a CAD drawing of your product, with the dimensions you selected so you can put your eyes on it before we manufacture it for you. You can always call us at (715) 718-0781 if you want us to walk you through your order. The project will typically take between 3-4 weeks to manufacture. If you need to have them sooner please select "rush" when ordering.
(No reviews yet)
Write a Review
7-Legged Beam Truss Center Bracket - (BB7L)
7-Legged Beam Truss Center Bracket - (BB7L)
Custom Heavy-Duty Steel Web Plate & Truss Gusset for Beam to Angle Brace Connections
Custom Heavy-Duty Steel Web Plate & Truss Gusset for Beam to Angle Brace Connections
Create rock-solid, perfectly balanced center connections in your timber truss with the BB7L 7-Legged Beam Truss Center Bracket — a precision custom steel web plate (also known as a truss plate or gusset plate) engineered specifically for the critical junction where a horizontal beam meets multiple angle braces or queen posts.
This true 7-legged center connector delivers superior load distribution across seven connection points, exceptional structural integrity, and clean architectural lines without welds or field fabrication. Ideal for complex multi-brace and multi-queen-post trusses, large pergolas, pavilions, gazebos, barns, porch roofs, timber-frame homes, and any exposed structural or decorative roof system that demands maximum strength and symmetry.
Unlike generic off-the-shelf connectors or thin decorative plates, the BB7L is fully custom-built to your exact geometry. Every bracket is hand-fabricated in the USA from high-grade carbon steel and tailored for leg lengths, brace angles, steel thickness, hole patterns, cut style, and finish so it fits your timbers perfectly the first time.
Why the BB7L Stands Out as a Superior Truss Center Plate
- True 7-Legged Center Design – Purpose-built for complex multi-brace / multi-queen-post truss centers, connecting the main beam to seven angled braces with outstanding load distribution, balanced strength, and clean, professional lines.
- One-Piece Custom Steel Web Plate / Gusset Construction – Heavy-duty solid steel (no welds). Choose thickness from 1/8" up to 1/2"+, the angles will be evenly spaced between the horizontal and the vertical legs (if you need custom angles, just communicate that to us in a message during your order check out or you can tell us when we send you a CAD drawing of the piece for approval), precise cut style for how the braces meet the beam, and custom hole placement.
- Architectural Finishes That Last – Black powder coat, hammered black, oil-rubbed bronze, rusted patina, and other premium options for excellent corrosion resistance and a refined look that complements cedar, pressure-treated, or reclaimed timbers.
- CAD Verification Before Production – After you order, our team creates a detailed CAD drawing of your exact specifications so you can review and approve the fit before manufacturing begins.
- Easy Professional Installation – Pre-drilled for bolts or lag screws. Compatible with standard timber sizes used in pergolas, pavilions, and timber framing.
- Made in the USA – Hand-fabricated at our Superior, Wisconsin facility from American-sourced high-grade carbon A-36 structural steel.
- Complex multi-brace and multi-queen-post timber trusses
- Large pergola and pavilion center connections
- Gazebo, porch, and pavilion roof framing
- Exposed beam architectural details
- Barn, timber-frame, and commercial roof systems requiring maximum connection points

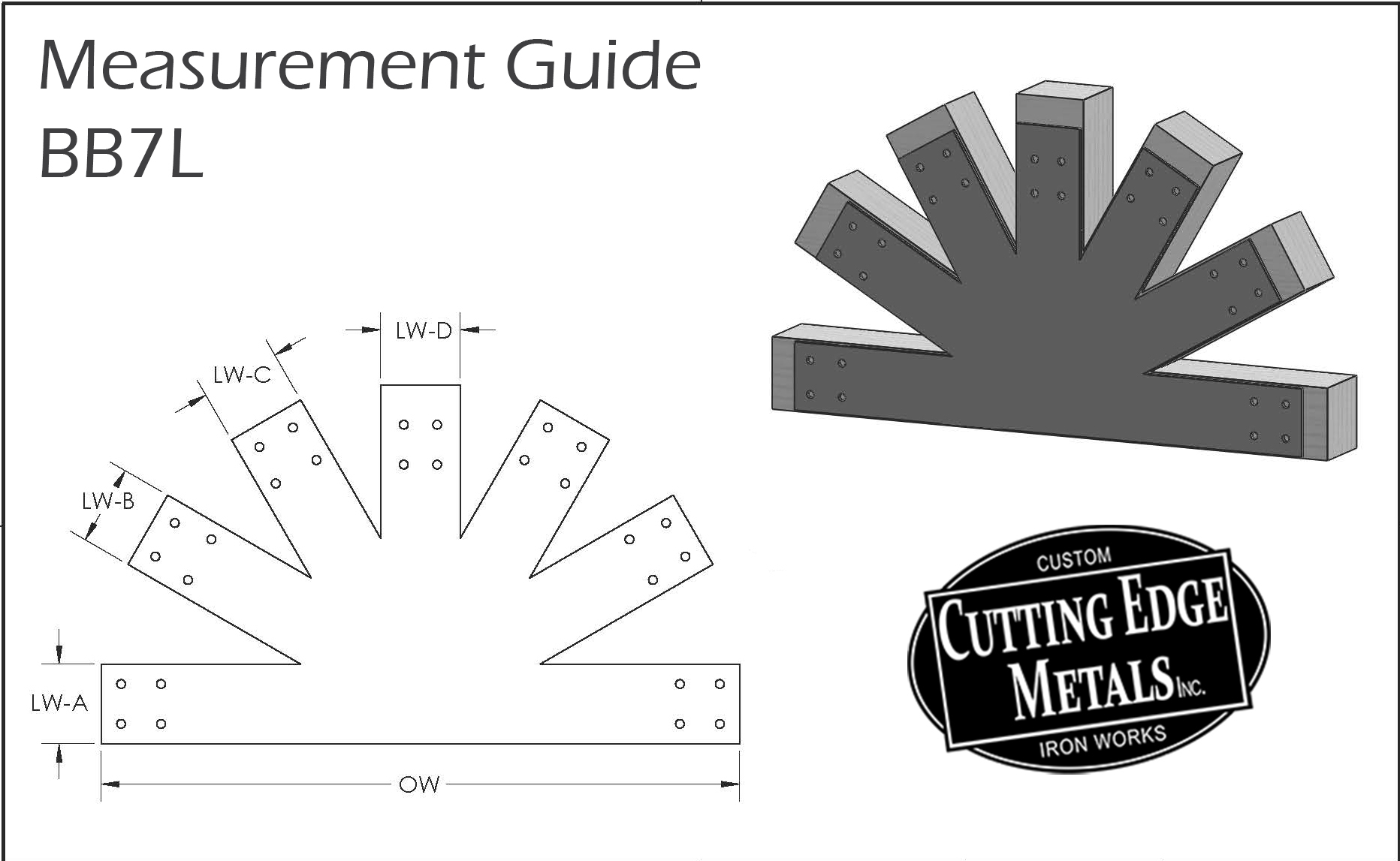

- Overall bracket size and individual leg lengths
- The angles will be evenly spaced between the horizontal and the vertical legs (if you need custom angles, just communicate that to us in a message during your order check out or you can tell us when we send you a CAD drawing of the piece for approval)
- Cut style – how the angle braces fit into or meet the main beam / king post
- Steel thickness (1/8" to 1/2"+)
- Hole size, quantity, and precise placement
- Finish options (see our metal finishes page)
- Compatible hardware packages (bolts, lags, nuts, washers)
