5-Legged Beam Truss Center Bracket - (BB5L)
$23.50
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 19 and get 10% off
- Buy 20 - 34 and get 12.5% off
- Buy 35 - 49 and get 15% off
- Buy 50 - 74 and get 17.5% off
- Buy 75 - 99 and get 20% off
- Buy 100 or above and get 22.5% off
If you're not quite sure about all your selections, don't worry, after you place your order, our experts will verify them and send you a CAD drawing of your product, with the dimensions you selected so you can put your eyes on it before we manufacture it for you. You can always call us at (715) 718-0781 if you want us to walk you through your order.
(No reviews yet)
Write a Review
5-Legged Beam Truss Center Bracket - (BB5L)
BB5L 5-Legged Beam Truss Center Bracket – Custom Heavy-Duty Steel Web Plate & Truss Gusset for Beam to Angle Brace Connections
Create rock-solid, clean center connections in your timber truss with the BB5L 5-Legged Beam Truss Center Bracket — a precision custom steel web plate (also called a truss plate or gusset plate) designed specifically for the critical junction where a horizontal beam meets multiple angle braces or queen posts.
This 5-legged center connector delivers superior load distribution, perfect alignment, and a professional architectural appearance without welds or field fabrication. Ideal for pergolas, pavilions, gazebos, barns, porch roofs, timber-frame homes, and any exposed structural or decorative truss system.
Unlike off-the-shelf connectors or lighter-gauge decorative plates, the BB5L is fully engineered to your exact geometry. Every bracket is hand-fabricated in the USA from high-grade carbon steel and customized for leg lengths, brace angles, steel thickness, hole patterns, and finish so it fits your timbers perfectly the first time.
Why the BB5L Stands Out as a Superior Truss Center Plate
- True 5-Legged Center Design – Purpose-built for multi-brace / queen-post truss centers, connecting the main beam to multiple angled braces with balanced strength and clean lines.
- Custom Steel Web Plate / Gusset Construction – One-piece heavy-duty steel (no welds). Choose thickness from 1/8" up to 1/2"+, exact angles for your roof pitch, cut style for how braces meet the beam, and precise hole placement.
- Architectural Finishes That Last – Black powder coat, hammered black, oil-rubbed bronze, rusted patina, and more for corrosion resistance and a refined look that complements cedar, pressure-treated, or reclaimed timbers.
- CAD Verification Before Production – After you order, our team creates a detailed CAD drawing of your exact specifications so you can approve the fit before we manufacture.
- Easy Professional Installation – Pre-drilled for bolts or lag screws. Compatible with standard timber sizes used in pergolas, pavilions, and timber framing.
- Bulk Pricing Available – Volume discounts starting at 10 pieces make the BB5L cost-effective for larger projects.
- King-post and queen-post style timber trusses
- Pergola and pavilion center connections
- Gazebo and porch roof framing
- Exposed beam architectural details
- Barn and timber-frame reinforcement

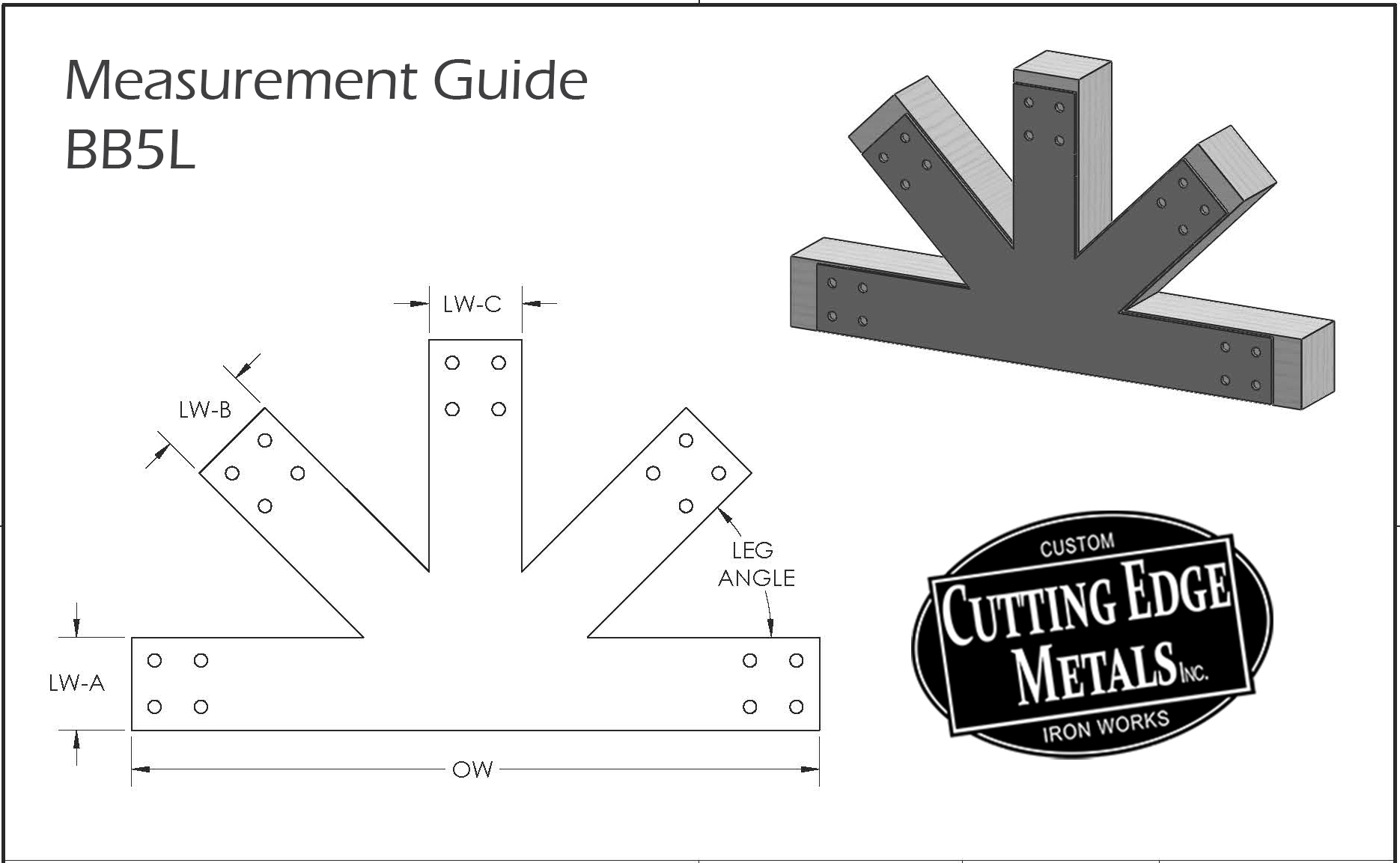

- Bracket overall size and leg lengths
- Exact angles of angle braces / queen posts
- How the braces cut into or meet the main beam
- Steel thickness and hole size/placement
- Finish selection
- Compatible hardware packages
