5-Legged Beam Truss Center Bracket - Double Crop These custom 5-Legged Double Cropped Beam Connecting Brackets are for where a horizontal beam connects with the angle braces and king post, securing the timbers together. We make truss plates to any size, angle, thickness, hole placement and size or finish. - Measurement Guide

5-Legged Beam Truss Center Bracket - Double Crop - (CCBB5L)

SKU:
CCBB5L
$25.00
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 19 and get 10% off
  • Buy 20 - 34 and get 12.5% off
  • Buy 35 - 49 and get 15% off
  • Buy 50 - 74 and get 17.5% off
  • Buy 75 - 99 and get 20% off
  • Buy 100 or above and get 22.5% off

If you're not quite sure about all your selections, don't worry, after you place your order, our experts will verify them and send you a CAD drawing of your product, with the dimensions you selected so you can put your eyes on it before we manufacture it for you. You can always call us at (715) 718-0781 if you want us to walk you through your order. The project will typically take between 3-4 weeks to manufacture. If you need to have them sooner please select "rush" when ordering.

(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
5-Legged Beam Truss Center Bracket - Double Crop - (CCBB5L)

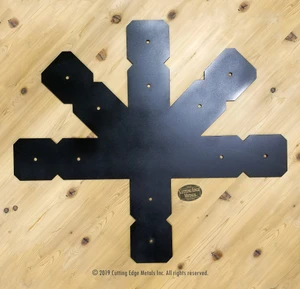

The CCBB5L is a custom 5-leg plate for the center of an exposed timber truss. It covers the hub where a main beam, king post, and angle braces come together.

It is cut from A36 structural steel—the same grade used on load-bearing plates and brackets—not light decorative sheet. One piece. No welds. Sized to your actual timbers, brace angles, hole pattern, and finish.

Why this plate instead of a kit or a stock 5-arm plate

Truss kits sell a full package at a listed beam width and pitch. That works if your layout matches their menu. It does not if your posts are dressed cedar, your pitch is off-list, or you only need the center plate.

Fixed “5-arm” pergola plates are one size and thin stock. Toothed nail plates are for hidden factory trusses, not a face-mounted architectural joint.CCBB5L is the single center plate when you already know the joint and want that connection cut from A36 to your dimensions.

What actually matters when you order

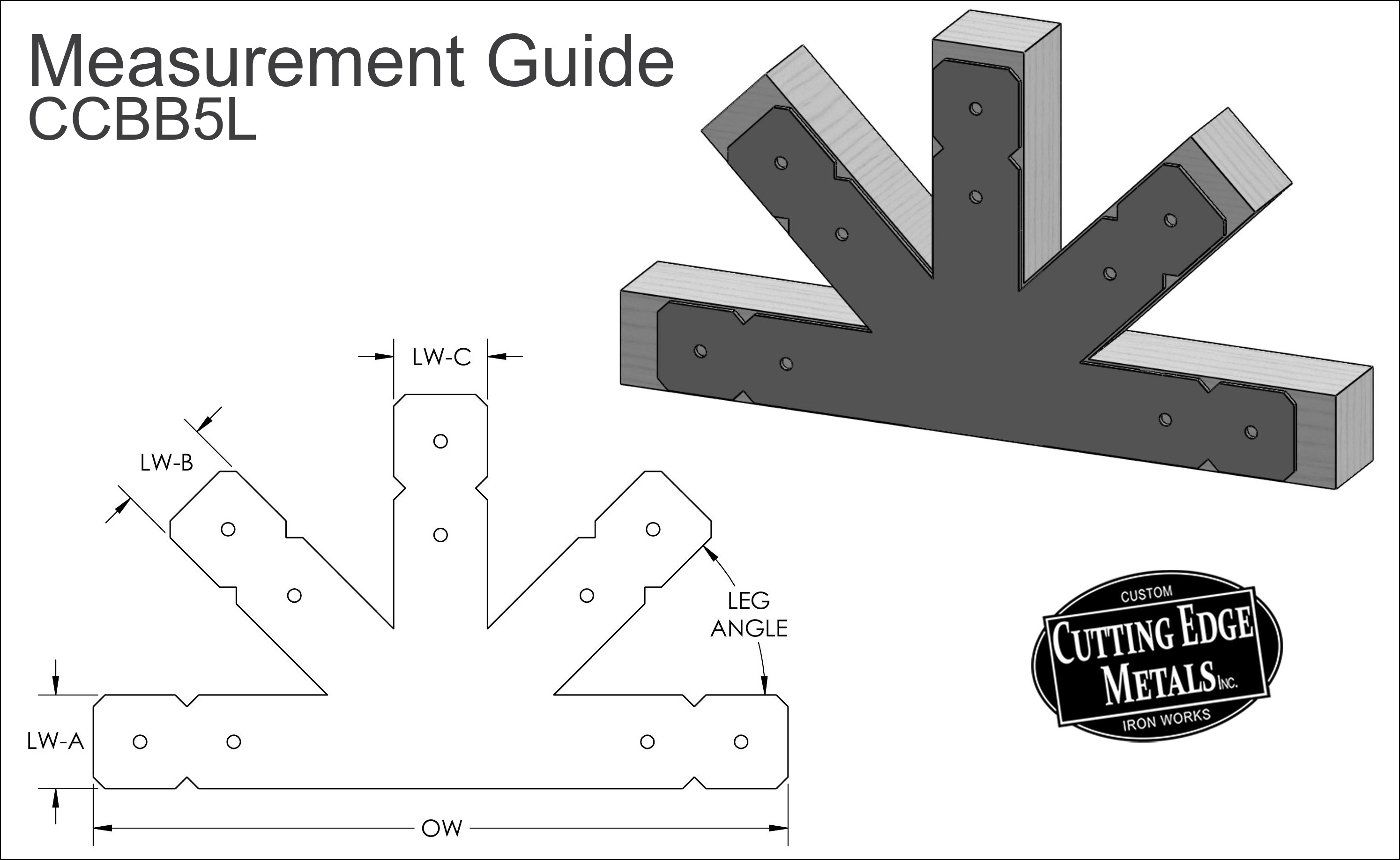

  • Real timber widths (measure the dressed beam and post)
  • Brace / roof pitch
  • Steel thickness in A36
  • Hole size and pattern
  • Finish
The double crop is only an edge treatment so the plate sits a little tighter on the members. Choose it if you want that look. The square 5-leg (BB5L) is the same A36 hub plate without that cut.

Where it is used

Pergolas, pavilions, gazebos, porch roofs, barns, and timber-frame trusses where the center joint is visible.

After you order, the layout can be drawn for approval before the plate is cut. Confirm loads and fastening with your engineer or local code.
