6-Legged Beam Truss Center Bracket - Double Crop - (CCBB-6L)

SKU:
CCBB-6L
$28.50
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 19 and get 10% off
  • Buy 20 - 34 and get 12.5% off
  • Buy 35 - 49 and get 15% off
  • Buy 50 - 74 and get 17.5% off
  • Buy 75 - 99 and get 20% off
  • Buy 100 or above and get 22.5% off

If you're not quite sure about all your selections, don't worry, after you place your order, our experts will verify them and send you a CAD drawing of your product, with the dimensions you selected so you can put your eyes on it before we manufacture it for you. You can always call us at (715) 718-0781 if you want us to walk you through your order. The project will typically take between 3-4 weeks to manufacture. If you need to have them sooner please select "rush" when ordering.

(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

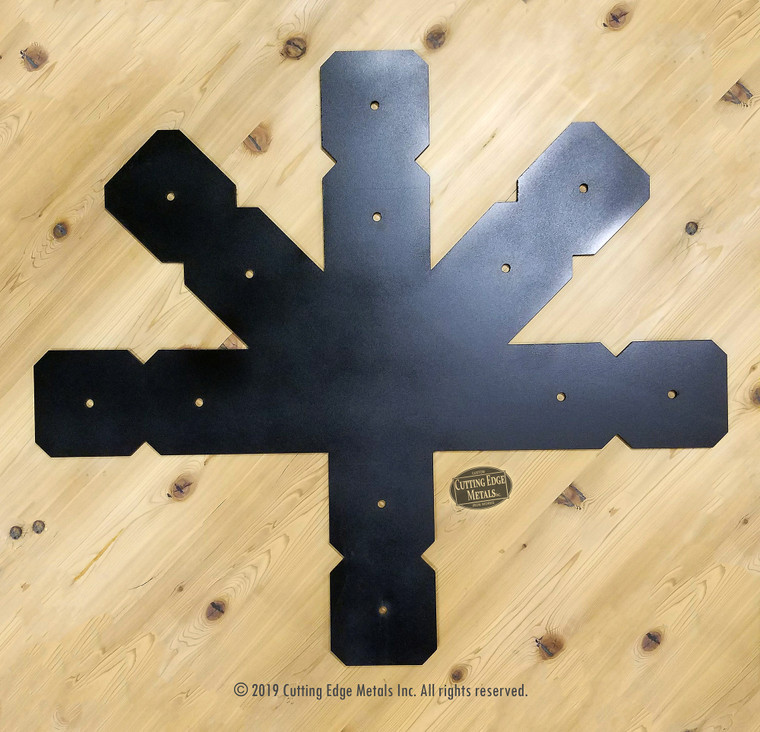

6-Legged Beam Truss Center Bracket - Double Crop - (CCBB-6L)

Create rock-solid, perfectly aligned multi-brace center connections with the CCBB-6L 6-Legged Beam Truss Center Bracket – Double Crop. This precision custom steel web plate (also known as a truss plate or gusset plate) features a true 6-legged design with double-cropped ends for superior fit and clean architectural lines where a horizontal beam meets multiple angle braces or queen posts.

Engineered for complex timber trusses, the double-crop configuration provides enhanced contact and a professional finished appearance without field welding or modification. Ideal for pergolas, pavilions, gazebos, barns, porch roofs, timber-frame homes, and any exposed structural or decorative roof system.

Unlike generic off-the-shelf connectors, every CCBB-6L is fully custom-built to your exact geometry and hand-fabricated in the USA from high-grade American carbon steel.
Why the CCBB-6L Double Crop is the superior choice for 6-legged truss centers
  • True 6-Legged Center Design with Double Crop – Purpose-built for multi-brace / multi-queen-post truss centers. The double-cropped leg ends deliver improved timber engagement, balanced load distribution across six connection points, and a clean, professional look.
  • One-Piece Custom Steel Web Plate / Gusset – Solid heavy-duty construction with no welds. Choose thickness from 1/8" up to 1/2"+, exact brace angles matching your roof pitch, precise cut style, and custom hole placement.
  • Architectural Finishes That Last – Black powder coat, hammered black, oil-rubbed bronze, rusted patina, and other premium options for excellent corrosion resistance and a refined appearance that complements cedar, pressure-treated, or reclaimed timbers.
  • CAD Verification Before Production – We create a detailed CAD drawing of your exact specifications so you can review and approve the fit before we manufacture.
  • Easy Professional Installation – Pre-drilled for bolts or lag screws. Compatible with standard timber sizes used in pergolas, pavilions, and timber framing.
  • Made in the USA – Hand-fabricated at our Superior, Wisconsin facility from American-sourced high-grade carbon steel.
Customizations for the CCBB-6L 6-Legged Double Crop Beam Truss Center Bracket
  • Overall bracket size and individual leg lengths
  • Exact angles of your angle braces / queen posts
  • Double-crop cut style (and how the braces meet the main beam / king post)
  • Steel thickness (1/8" to 1/2"+)
  • Hole size, quantity, and precise placement
  • Finish options (see our metal finishes page)
  • Compatible hardware packages (bolts, lags, nuts, washers)
Have a custom drawing? Email it to info@cuttingedgemetals.com or request a quote — we’re happy to engineer the perfect double-cropped truss plate for your project.

When ordering, make sure to provide the correct timber sizes. These are custom made to order and cannot be returned due to incorrect sizing.
Common Applications
  • Complex multi-brace and multi-queen-post timber trusses
  • Pergola and pavilion center connections
  • Gazebo, porch, and pavilion roof framing
  • Exposed beam architectural details
  • Barn, timber-frame, and commercial roof systems
