4-Way Post or Column Cross Beam Brackets
The purpose of custom post to column cross beam brackets is to connect four beams at the top of a column. Our custom steel post to cross beam brackets are great for pergolas, gazebos, timber framing and other timber connections. This particular bracket sits on top of a post and allows 4 beams to intersect at the top of that post. Straps run down the post. These are made custom in thickness, size, finish to fit your timber project perfectly.

4-Way Post or Column Cross Beam Connecting Caps - (4W-PTC)

Name: 4-Way Post or Column Cross Beam Connecting Caps - (4W-PTC)
SKU: 4W-PTC
Availability: OutOfStock

SKU:

4W-PTC

Call to get pricing (715)718-0781

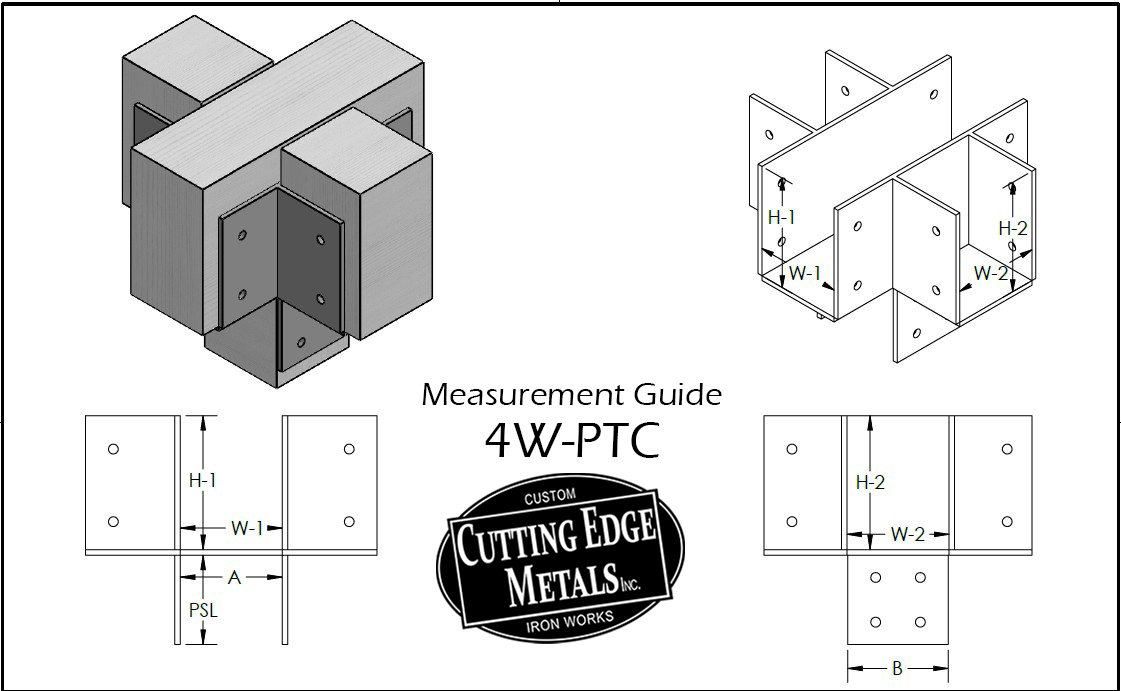

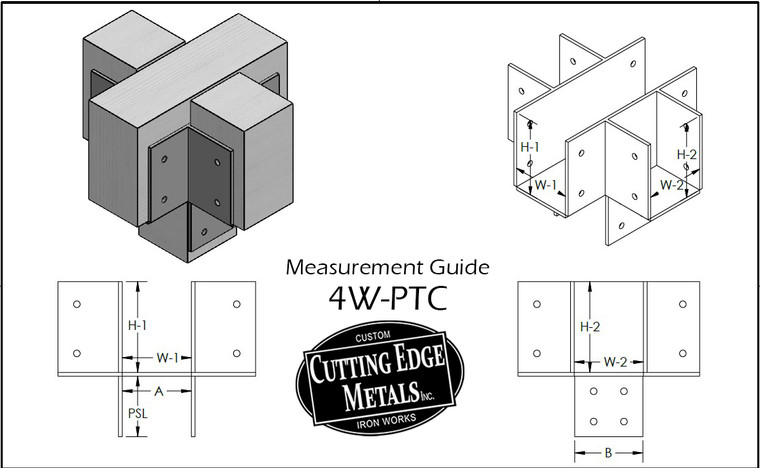

See below for measurement guide

(No reviews yet)

Beam Width (W-1): (Required)

Beam Height (H-1): (Required)

Beam Width (W-2): (Required)

Beam Height (H-2): (Required)

Post Width (In between post straps) (A): (Required)

Post Depth (Perpendicular to straps) (B): (Required)

Post Strap Length (PSL): (Required)

Steel Thickness: (Required)

Size diameter of screws (for hole size): (Required)

Corner Treatment: (Required)

Hammering / Weathering: (Required)

Color: (Required)

RUSH ORDER (Extra fee for a rush): (Required)

Current Stock:

Transform the structural integrity and visual impact of your pergola, gazebo, pavilion, timber frame home, porch, or outdoor structure with our premium 4-way post or column cross beam connecting caps (4W-PTC) – the ultimate custom solution for securely joining four beams or rafters at the top of a single post or column. Unlike generic T-shaped, adjustable, or one-size-fits-all post caps that often leave gaps, require shims, or lack style, every 4W-PTC cap is handcrafted in our Wisconsin shop to your exact timber dimensions and design preferences, delivering flawless fit, superior load-bearing strength, and architectural elegance that elevates any project.Why Choose Cutting Edge Metals 4W-PTC 4-Way Cross Beam Connecting Caps?

100% Custom-Fabricated for Seamless Fit – Built precisely to your post/column and beam sizes (inside clearance typically 1/16" over for easy sliding, or exact fit on request). Say goodbye to wobbly connections, forced modifications, or ill-fitting brackets common with off-the-shelf options.
Robust Heavy Duty Steel Construction – Made from high-grade steel plate in your selected thickness for exceptional structural support and durability under heavy loads, wind, snow, or long-term use.
Premium Powder Coat Finish Options – Choose from a broad spectrum of colors and custom finishes for maximum corrosion resistance, weatherproofing, and a refined, modern or rustic aesthetic that complements your wood perfectly. Unfinished/raw steel also available for on-site coating.
True 4-Way Design Flexibility – Engineered to connect four beams intersecting at the post top (cross or + configuration). Optional strap/sleeve extensions down the post for added stability, or custom orientations (e.g., centered, offset). Hole sizes and placements tailored to your preferred fasteners (screws, bolts, lags).
Decorative Architectural Statement – These aren't basic connectors – they're design features. Clean lines, optional detailing, and custom shaping make them ideal for high-end timber framing, exposed beam structures, and visible connections that demand both strength and beauty.
Straightforward Installation – Slide the cap over the post top, position beams into the arms, and secure with fasteners through pre-drilled holes. No specialized tools beyond basic drilling and bolting needed. Includes detailed measurement and install guidance with every order.
Proudly Made in the USA – Handcrafted in Superior, Wisconsin, since 2005. We specialize in bespoke architectural metalwork, offering the precision and quality that mass-produced brands can't replicate.

Ideal Applications for 4W-PTC 4-Way Connecting Caps

Pergola and gazebo beam intersections
Pavilion and outdoor structure cross-bracing
Timber frame homes and barns with multi-beam posts
Porch, deck, or patio column connections
Decorative exposed post tops in modern or rustic designs
Any project needing secure, stylish 4-directional beam support

Key Specifications

Model: 4W-PTC (4-Way Post/Column Cross Beam Connecting Cap)
Material: High-grade steel (custom thickness selectable)
Finish: Powder coated (custom colors/process) or unfinished
Customization: Post/column size, beam arm dimensions, steel thickness, hole sizes/placement, optional straps/sleeves, finish
Production Time: Typically 2-3 weeks; rush options available
Hardware: Compatible with standard screws/bolts (custom holes provided)
Note: Provide accurate actual timber measurements – custom fabrication means no returns for sizing mismatches.

Don't compromise with generic post caps that rust quickly, fit poorly, or disappear into the background. Our 4W-PTC 4-way cross beam connecting caps deliver unmatched engineering strength, weather resistance, and custom craftsmanship that architects, builders, and homeowners rely on for standout results.Ready to crown your posts with the best custom 4-way connectors available? Call us at (715) 718-0781 for a fast quote, or add to cart to configure your options and view quantity-discounted pricing. Order today and feel the Cutting Edge difference – where every cap is engineered to perform and designed to impress.
