Standoff post to beam timber brackets are a really decorative way to mix wood and steel. By putting a wooden beam on top of a post or a beam over another beam going the opposite direction; the beam will stand off a bit from the post giving the beam a bit of lift creating an interesting design. Finished in matte black powder coat. Thick steel, made custom to order.

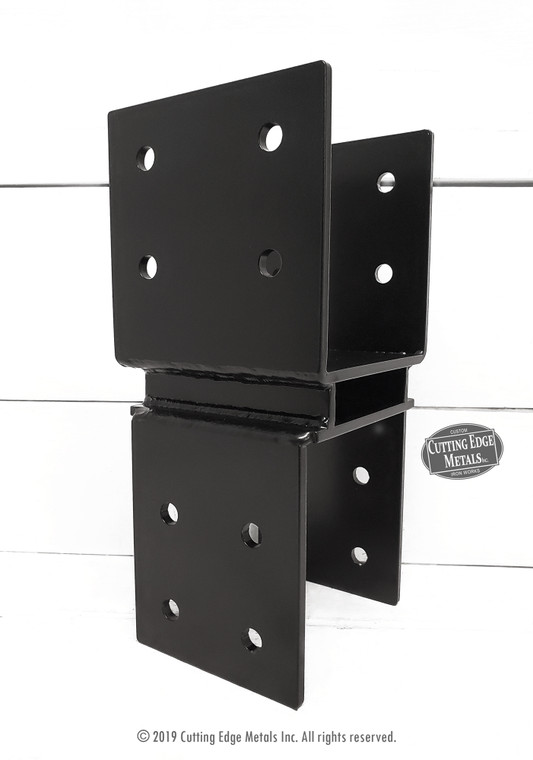

Standoff Post to Beam Timber Brackets - (SOPTG10)

SKU:
SOPTG10

Call to get pricing (715)718-0781

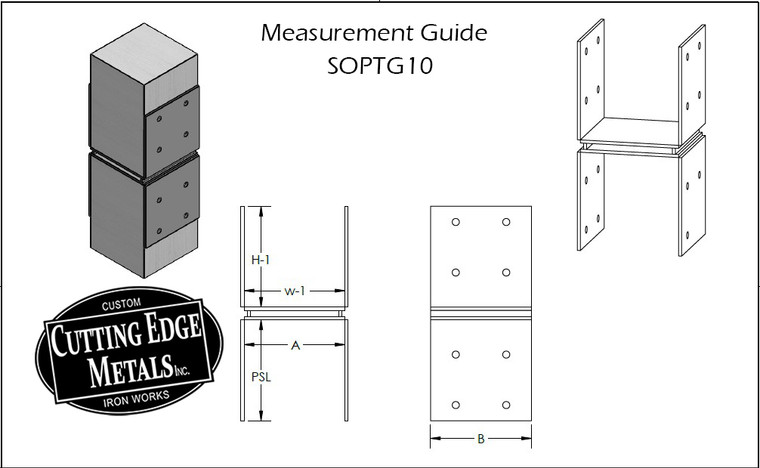

See Measurement Guide Below

(No reviews yet)
Current Stock:
Description

Standoff Post to Beam Timber Brackets – Custom Heavy Duty Steel SOPTG10 Connectors


Elevate Your Timber Projects with the Signature Standoff Design

Transform ordinary post-to-beam connections into stunning architectural statements with our SOPTG10 Standoff Post to Beam Timber Brackets. These aren't your standard flat connectors. The innovative standoff plate creates a subtle, intentional lift—giving your beams that floating, modern-rustic look that turns heads on pergolas, gazebos, pavilions, timber frame homes, decks, and outdoor living structures.

Hand-fabricated in Superior, Wisconsin from premium American steel, every SOPTG10 bracket is built to your exact specifications. No guessing, no gaps, no returns. We make the inside dimensions 1/16" larger than your measured timbers for a perfect slide-on fit (or note "tight fit" at checkout for zero play).

Why Builders, Designers, and DIYers Choose Cutting Edge Metals SOPTG10 Brackets
  • Signature Standoff Style — Our design offsets the beam slightly for dramatic shadow lines, improved drainage, and visual interest that sets your project apart from flush-mount or basic connectors.
  • Unmatched Customization — Select steel thickness from 1/8" up to 1/2" (heavier options for demanding loads), over 10 premium outdoor-durable finishes, and fully custom hole patterns matched to your fasteners—far more flexibility than standard or off-the-shelf options.
  • Bulletproof Strength & Precision — Engineered for high-wind, heavy-snow, and long-span applications with superior shear, tension, and compression performance. The precise 1/16" oversized fit eliminates common installation frustrations seen in nominal or loosely toleranced brackets.
  • Made in the USA Difference — Artisan-crafted with pride in every weld, these brackets offer lasting quality and corrosion resistance that outlasts mass-produced or imported alternatives.
Key Features & Specifications
  • Custom Timber Fit: Specify your actual post sizes (e.g., 6x6, 8x8, 10x10) and beam sizes (e.g., 6x8, 8x10, double 2x12)—we build to match.
  • Standoff Configuration: Beam centered over post or flush to one face—your choice for the perfect aesthetic.
  • Steel Thickness Options: 1/8" (light decorative), 3/16", 1/4" (standard heavy duty), 3/8", 1/2" (extreme load-bearing).
  • Finish Options (all built for outdoor longevity):
    • Satin Black / Dark Bronze Powder Coat
    • Hammered Black
    • Oil-Rubbed Bronze (black or brown base)
    • Rusted Patina with Clear Coat
    • Unfinished (ready for on-site finishing)
  • Hole Customization: Pre-drilled from 3/16" to 3/4" diameters to fit your lag screws, structural screws, or bolts.
  • Corner Details: Choose square, cropped radius, or inverse radius edges for a polished, professional appearance.
  • Lead Time: 2-3 weeks standard (rush options available for faster delivery).
Ideal Applications
  • Pergola & Gazebo Construction
  • Timber Frame Pavilions & Arbors
  • Deck & Patio Beam Supports
  • Barn & Garage Timber Framing
  • Modern-Rustic Outdoor Kitchens & Fire Pits
  • Commercial Outdoor Structures
How to Order Your Custom SOPTG10 Brackets
  1. Measure your timbers carefully (use actual dimensions, not nominal).
  2. Select quantity, thickness, post/beam sizes, hole details, finish, and any corner preferences.
  3. Add to cart—pricing updates in real time.
  4. Checkout securely, or call (715) 718-0781 for expert guidance.
Pro Installation Tip: Attach the bracket to the post top first, then slide the beam into place. The standoff provides extra working room and delivers that eye-catching reveal.Frequently Asked Questions

What makes the standoff design different from standard post-to-beam brackets?
The SOPTG10 creates an intentional ½"–1" gap/lift between the beam and post face, adding shadow depth, better water shedding, and a "floating beam" aesthetic that elevates the overall design.

Are these brackets suitable for structural use?
Yes—especially in ¼" or thicker steel with appropriate fasteners, they provide excellent performance for residential and many commercial loads. Consult your local engineer for high-wind/snow or engineered requirements.

How do I determine the right size to order?
Provide your actual measured post and beam dimensions. We oversize the bracket interior by 1/16" for easy installation.

What fasteners pair best?
We customize holes for your preferred type—1/2" lag screws are popular, as are structural wood screws (e.g., GRK or SDS-style).

Do you offer discounts for bulk/quantity orders?
Yes—for 10+ units or larger projects, add to cart and see how much you can save. For large projects, contact us directly for custom pricing and faster production/shipping.

Ready to Build Something Extraordinary?
Add your custom SOPTG10 Standoff Post to Beam Timber Brackets to the cart today. Questions? Our bracket specialists are here to help—call (715) 718-0781 or email info@cuttingedgemetals.com. We respond same-day and enjoy guiding customers toward show-stopping results.
